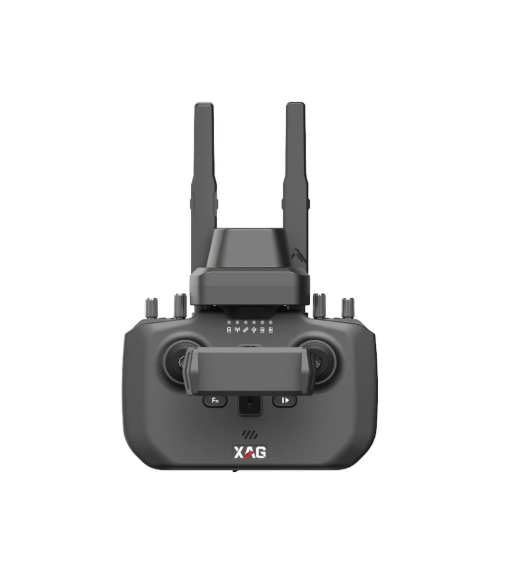

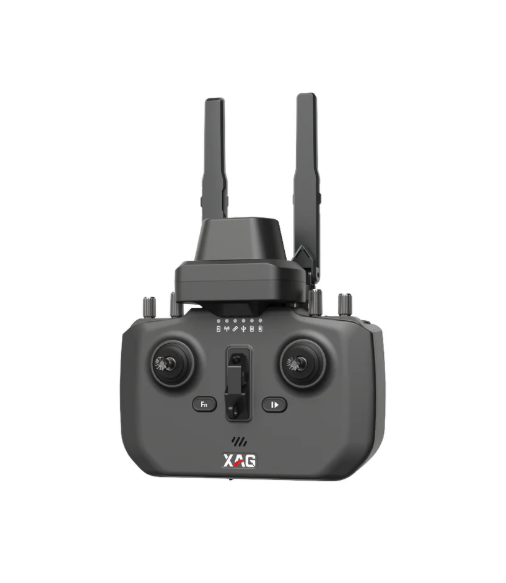

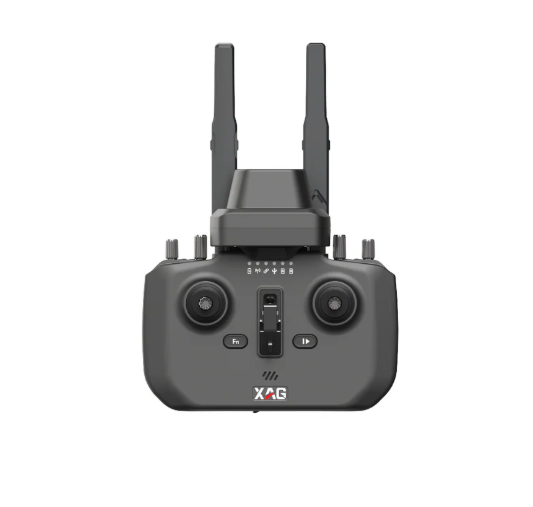

RC – ARC3 Pro (incl RTK)

Technical Specifications

• Model: M3ARC3AH
• Dimensions: 170 X 135 X 65 mm
• Operating Frequency: SRRC:
  • 2.4000 GHz to 2.4835 GHz;
  • 5.725 GHz to 5.850 GHz
• Effective Isotropic Radiated Power (EIRP):
  • 2.4 GHz SRRC: ≤ 20 dBm;
  • 5.8 GHz SRRC: ≤ 33 dBm
• Operating System Supported: Android, iOS
• Built-in Battery Capacity: 4932mAh, 7.38V
• Ambient Temperature for Charging: 0°C to 45°C
• Ambient Temperature for Operating: -20°C to 55°C
• Ambient Temperature for Storage:
  • -20°C to 25°C (three months to one year)
  • -20°C to 45°C (one month to three months)
  • -20°C to 55°C (less than a month)
• Max. Effective Signal Range: 1000 m
• Charging Voltage/Current: 5 V / 2 A, 9 V / 1.5 A, 12 V / 1.5 A
• Positioning Accuracy (Good RTK Signal):
  • Horizontal: < 5 cm+1 ppm (RMS)
  • Vertical: < 7.5 cm+1 ppm (RMS)
